can shred all types of electronic waste

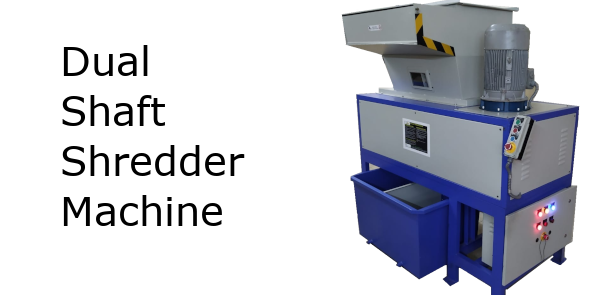

Double shaft shredder or dual shaft shredder is built with two shafts of blades. Similar to other shredder and grinder machines from Raj Electricals, this is also a heavy-duty shredder machine. Raj Electricals is manufacturing six different dual shaft models and the model numbers are given below with their specifications.
Click the tabs below to view specifications, salient features and the video
All the models are manufactured using best quality raw material and there is no use of plastic. Dual shaft models can be operated continuously for 24 hours. That is, continuous duty with no cooling required. All the parts can be easily cleaned and lubricated.
Double Shaft shredder has multiple applications in waste recycling. It shreds the waste output produced during the production process in various industries which can be further recycled and used.
Operation of dual shaft shredder - when the material is fed into the hopper, the two shafts of cutting blades catch/hook the material and shred/bite the material till it is completely shredded to small uneven particles (uneven because no mesh is involved to filter and hence the output is discharged directly for collection into the trolley. The double shaft shredder machine shredded output is uneven or random.
Raj Electricals have range of dual shaft shredder machines catering to various output capacity required by our customers. These models are – DS5007, DS1015, DS2002, DS3003, DS4005, DS7510. Detailed specifications are given in a chart in the adjacent tabs.
Dual Shaft Shredder is used to shred variety of waste items such as non-woven bags waste, cement bags waste, hard disk drive. It is also used to shred plastic drums. Some of the other applications include shredding of glucose bottles, plastic jars, pet bottles, food waste, vials, saline bottle, saline tubes, ampoules, syringes, catheters, blister packs, lami tubes, hospital waste, PVC blisters, papers, carton, fibre material, etc.
We are known for customization of our machines as per customer’s requirement.
Salient features of Dual Shaft Shredder Machine DS5007:
For more details related to price, trial of Dual Shaft Shredder Machines, kindly contact us.
| Technical Specifications of Dual Shaft Shredder DS5007 | |
|---|---|
| Model | "DS5007" |
| Feed Width | 500 mm |
| Voltage | 415 volts ac 3 phase 50 hz |
| Power Required | 7.5 hp / 5.6 kw | Shred Size | 25 x 60 (uneven) |
| Shredding Capacity | 200 kgs/hr |
| Machine Dimension (approx) | 1350 mm x W 900 mm X H 1850 mm |
| Duty Cycle | Continuous – non-stop running, no cooling required |
| Applications | Can shred HDPE and LDPE (Cement Bag/Non-woven Bag), syringes, vials, ampoules, saline bottles, catheters, glucose bottles, saline tubes, lami tubes, blister packs, PVC blisters, paper, pet bottles, hospital waste, cartons, fibre material, etc |
