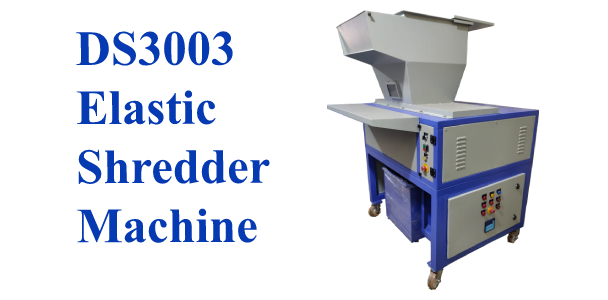

Elastic Waste Shredder Machine

Elastic Waste Shredder is a heavy-duty shredder machine from Raj Electricals. It is a dual shaft shredder, used to shred elastic waste such as elastic straps, elastic belts, elastic jeans, elastic trousers. Raj Electricals is globally popular for its shredder and grinder machines.

Click the tabs below to view specifications, salient features and the video

Salient features of Elastic Waste Shredder DS4005:

  • User-friendly and durable machine.
  • Installation and maintenance services on site.
  • Control Panel with auto reverse with anti-jamming feature, 360 degree safety with loto switch.
  • 3 phase indicator lamps with stop start and reverse inching push buttons.
  • All guards interlocked with limit switch (at extra cost).
  • Run time – Continuous duty.
  • Easy to clean & lubricate.
  • Overload & phase failure Protection.
  • No plastic parts used in manufacturing. All metal parts with rugged construction.
  • Vibration free.
  • Separate movable trolley is provided to collect the output.
  • Large waste collection trolley for collecting large volumes of output.

  • Kindly contact us for details of various models, prices and trial of Elastic Shredder Machines.

    Technical Specifications of Elastic Waste Shredder DS3003
    Model "DS4005"
    Feed Width 400 mm
    Voltage 415 volts ac 3 phase 50 hz
    Power Required 5hp
    Shred Capacity 50 kgs to 1OO kgs/hr
    Shred Size 12mm x 60mm (uneven)
    Duty Cycle Continuous – non-stop running, no cooling required
    Applications This is used to shred Elastic waste such as Elastic Waste Shredder is a heavy-duty shredder machine, used to shred Elastic waste such as elastic straps, elastic belts, elastic jeans, elastic trousers. elastic straps, elastic belts, elastic jeans.

    DS4005 Elastic Shredder Machine Video
