Specifications

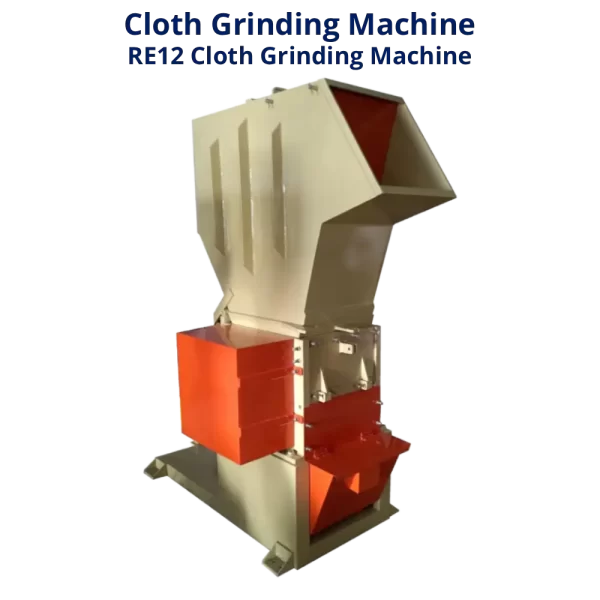

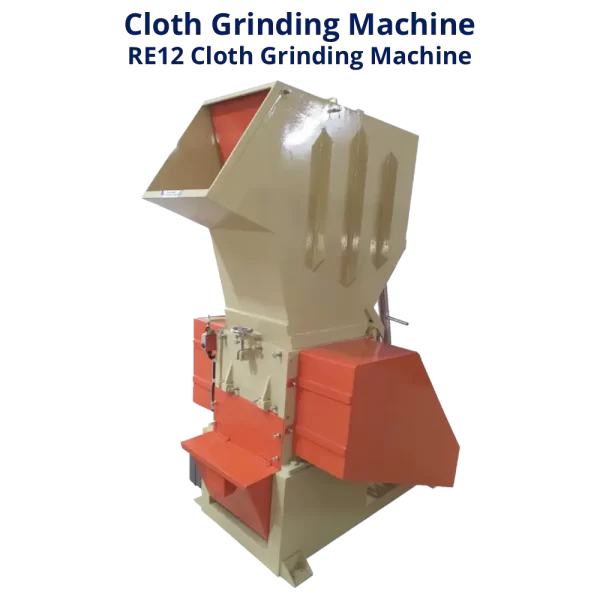

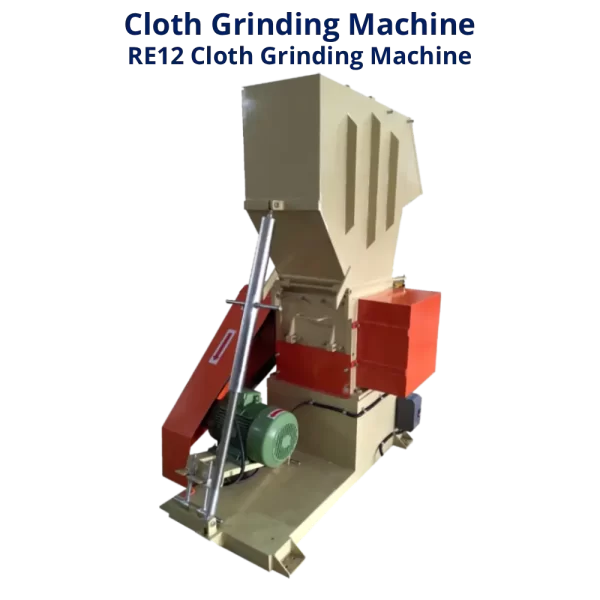

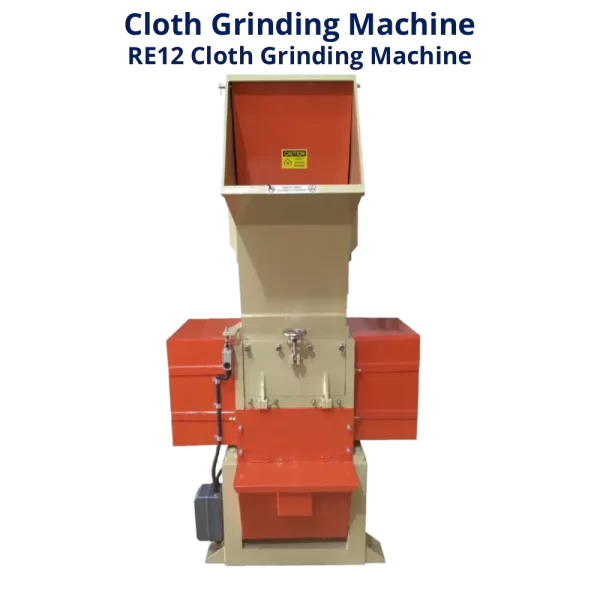

TECHNICAL SPECIFICATIONS OF RE12
Power Required	5hp
Voltage	415volts ac 3phase 50hz
Grinding Capacity (approx)	30 kgs/hr to 40 kgs/hr(will vary with the density of the material used and the size of the mesh used)
Mesh Size(Customized)	15mm (alternative size as per requirement can be provided)
Number of Blades(in 1set) (3 rotating, 2 fix)	5 numbers
Length of Blades	12″ (Sharpening of the blades should be done periodically, extra blade can be provided at extra cost)
Throat Size	12″ x 12″
Duty Cycle	Continuous
Applications	Can grind laminated jute cloth, polyester fabric – check related videos on our Youtube Channel – https://www.youtube.com/@rajelectricalsmumbai

Salient Features

User Friendly
Vibration Free
Easy to clean & lubricate
Continuous duty

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. Papers, Monocartons, Blister foil, Aluminium foil, Vouchers, Corrugated box, X-ray films, Outsters,

Credit cards, Debit cards, Lottery tickets, Label stock, Blister packs with medicines, Confidential papers, Computer printouts, Cheque leaflets, Sim cards, Pharma waste, Plastic waste, FRP Waste, Wood Waste, etc.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
