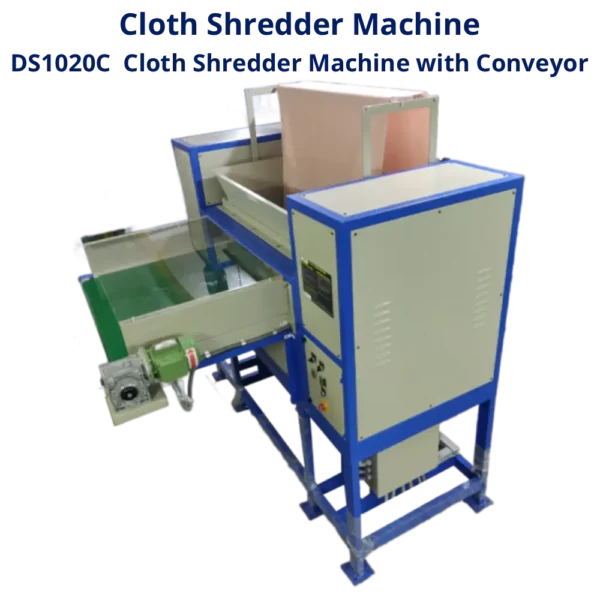

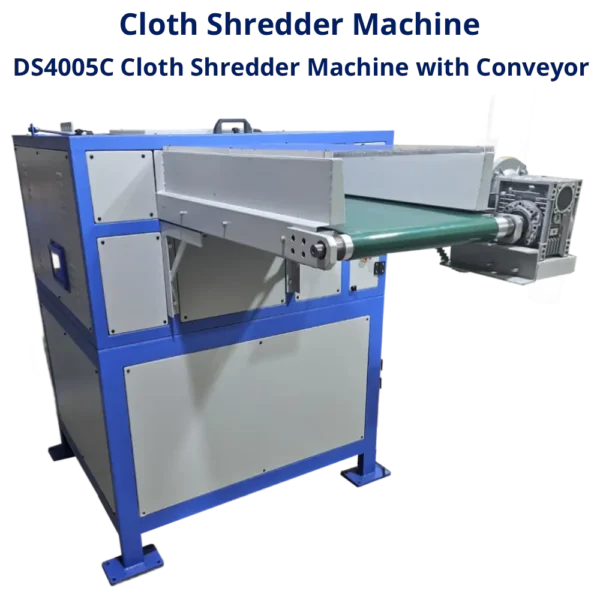

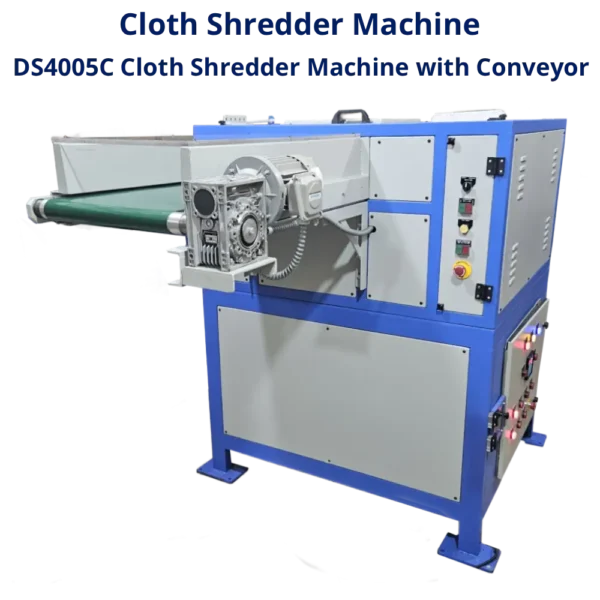

Cloth Shredder Machine|Fabric Shredder Machine|Textile Shredder Machine|

Specifications

TECHNICAL SPECIFICATIONS OF CLOTH-FABRIC SHREDDER MACHINE
Model No	DS 4005	DS 5007	DS 7510
Feed Width (mm)	400mm	500mm	750mm
MOTOR HP	5HP	7HP	10HP
Shred Size (mm)	12X60 mm or (uneven for Municipal waste)	12X50 or (uneven)	24X60mm
Shred Capacity Per/Hr	120 to 150kg/hr	150 to 200kg/hr	250 to 300kg/hr
Machine Dimensions (mm) L x W x H	71″ x 24″ x 67″	72″ x 26″ x 69″	82″ x 26″ x 69″
Weight (kgs) (approx)	350kgs	500kgs	750kgs
Duty Cycle	Continuous	Continuous	Continuous
Waste Volume (Litres)	180 Litres	180 Litres	180 Litres
Overload Protection	Yes	Yes	Yes
Trolley	Optional	Optional	Optional
UNWINDER WITH ROLLER ASSEMBLY	Optional	Optional	Optional

Salient Features

User friendly
Durable
Smooth Operations
Low power consumption
Maintenance free
High security level

FAQs

FAQs related to Shredder Machines

Q. What material can I shred in the shredder?

A. The Shredder Machine can shred all types of waste such as Paper, Pharma, Plastic, FRP, Metal, Glass, Wood, E-waste, Garden Waste, etc. If any of your products is not listed above, we request you to contact us and we shall get back asap.

Q. What does “Throat Width” or "Feed Width" mean?

A. Feed Width or Throat width refers to the size of the opening in which you put your materials. For maximum efficiency and speed, its best to choose a width that will comfortably accommodate the material you want to shred most.

Q. How do I maintain my Shredder or Grinder?

A. The most common things to cause shredder problem is user misuse and abuse, including overloading it. Proper training on the use of shredders can help minimize these problems. The other major component to keeping your shredder working properly is keeping the cutting head properly oiled. Depending on the type of shredder you purchase, this will vary. Oil lubricates the cutting blades, extending their life and helping them run smoother and quieter.
