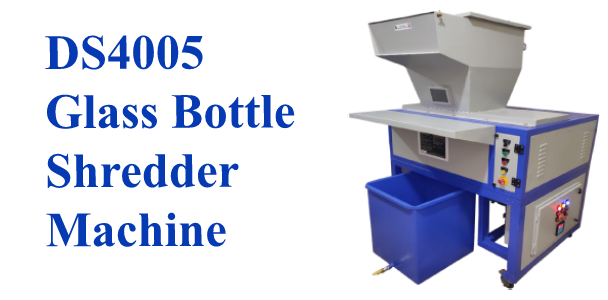

Glass Bottle Shredder Machine is a heavy-duty shredder machine from Raj Electricals. It is a dual shaft shredder machine, that can shred glass bottles,vials, ampoules,lami tubes,syringes, and large bottles up to 250ml (to be fed one by one). Our shredder and grinders are manufactured using best quality raw material and are user-friendly as well as durable machines.
One of the significant virtue of this machine is the bottles filled with liquid can also be inserted for shredding. There is no need to empty the bottle, prior to shredding. If the bottles are filled with liquid and inserted the liquid is separated by SS mesh. The mesh is placed in Waste Collection bin. In this process the liquid is drained through mesh which further can be drained through a pipe connected to the bin with drain valve at the outlet.
Click the tabs below to view specifications, salient features and the video
Salient features of Glass Bottle Shredder DS4005:
For more details related to price, trial and various models of Glass Bottle Shredder Machine, kindly contact us.
| Technical Specifications of Glass Bottle Shredder DS4005 | |
|---|---|
| Model | "DS4005" |
| Feed Width | 400 mm |
| Voltage | 415 volts ac 3 phase 50 hz |
| Power Required | 5hp |
| Shred Capacity | 250 kgs to 3OO kgs/hr |
| Shred Size | Uneven |
| Dimension | L 57" X W 46" X H 77" (approximately) |
| Weight | 850 kgs(approximately) |
| Waste Collection Trolley | 100 litres (approximately) |
| Duty Cycle | Continuous – non-stop running, no cooling required |
| Chamber Size No. 1 | 200 x 200 |
| Applications | This is used to shred Vials, Ampoules, Glass Bottles, Syringes, Lami Tubes , big size bottles upto 250ml (to be fed one by one). |
| Chamber Size No. 2 | 200 x 200 |
| Applications | This is used to shred Cartons, Mono Cartons, Corrugated Boxes, Blister Packs, Tablets, HDPE Bottles, Plastic Vials, Catheters, Aluminium Foils, etc. |
| Liquid Separation | SS Mesh is placed in Waste Collection bin. Liquid is drained through mesh which further can be drained through a pipe connected to the bin with drain valve at the outlet. . |
