Can shred all types of digital storage devices like HDD,USB(Pen Drives),Tapes, SSD, Floppy, etc.

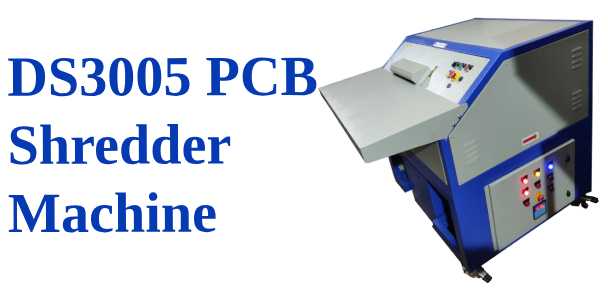

PCB Shredder- Model DS3005 from Raj Electricals, shreds Printed Circuit Boards that are of no further use and beyond repairs. It is the preliminary step in the recycling of the Circuit Board. It is necessary to recycle electronic waste since if it is thrown in landfills, it may be hazardous to the environment. The reason is that the contents of these circuit board consists of various metals such as tin, lead and copper and others such as zinc, magnesium, etc. These metals if discarded without a proper recycling process will be detrimental to the environment, and eventually will also have adverse effects on human health.
PCB Shredder from Raj Electricals is a double-shaft shredder machine. This DS3005 Dual Shaft Shredder is a durable machine and can withstand the rigours of the job on a daily basis without compromising on efficacy.
DS3005 Circuit Board Shredder can perform 24-hour duty. The machine can be easily cleaned and lubricated to further boost its longevity. The sharp blades of this PCB Shredder Machine shred the Circuit Boards and the output is collected separately in a movable trolley.
Click the tabs below for more information about PCB Shredder Machine, salient features, specifications, and the video
PCB Shredder Machine shreds PCB board into uneven pieces. This Circuit Board Shredder from Raj Elecrtricals can also shred Electronic waste, Mobile Phones, Chargers, etc.
Raj Electricals is popular for manufacturing and supplying top-quality shredders and grinders. These Shredder and Grinder Machines, are known for their efficiency and durability.
Our new machine Circuit Board Shredder Machine - DS3005 has a feed width of 300mm and the shredding capacity is 150kgs/hr to 200kgs/hr (output capacity depends on the feed speed and the material density). This Circuit Board Shredder machine can run continuously for 24 hours, similar to other machines from RAJ ELECTRICALS. No cooling is required.
DS3005 model is a user-friendly circuit board shredder from Raj Electricals. It is a robust and sturdy machine. We request you to watch the Video in the adjacent tab to know the exact process.
Salient features of Circuit Board Shredder Machine DS3005:
For more details of prices, trial, kindly contact us.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Model | "DS3005" |
| Feed Width | 300 mm |
| Voltage | 415 volts ac 3 phase 50 hz |
| Power Required | 5 hp/3.75 kw |
| Shred Capacity | 150 kgs/hr to 200 kgs/hr |
| Shred Size | Uneven |
| Waste Collection Trolley | 60 liters (Approx) |
| Control Panel | Panel with 24DC Control circuit with R.Y.B phase indicators, Overload and phase failure protection, Loto switch, Limit switch for Hopper(Machine will stop if hopper is removed), Stop/Start push button with Emergency stop and Reverse inching push button with buzzer for overload. |
| Machine Dimension (Approx) | Length – 47”x Width – 48” x Height – 77” |
| Weight of the machine (Approx) | 650 kgs |
| Duty Cycle | Continuous – non-stop running, no cooling required |
| Applications | Can shred PCB-Printed Circuit Boards, mobiles, chargers, electronic waste that includes all types of digital storage devices like HDD, USB(Pen Drives),Tapes, SSD, Floppy, etc. |
